Modular tracks in local wood to foster safe and rapid active mobility with reduced environmental imprint

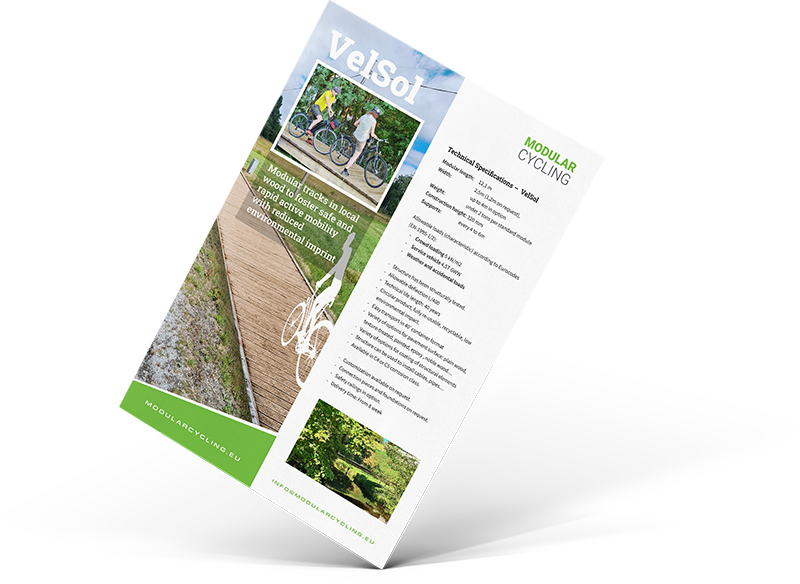

Download – Technical Documentation VelSol
Technical Specifications – VelSol
Modular length: 12,1 m
Width: 2,5m (1,2m on request), up to 4m in option
Weight: under 2 tons per standard module
Construction height: 320 mm
Supports: every 4 to 6m
Allowable loads (characteristic) according to Eurocodes (EN-1995-1/2):
– Crowd loading 5 kN/m2
– Service vehicle 4,5T GWW
– Weather and accidental loads
– Structure has been structurally tested
– Allowable deflection L/400
– Technical life length: 40 years
– Circular product, fully re-usable, recyclable, low environmental impact.
– Easy transport in 40’ container format
– Variety of options for pavement surface: plain wood, texture-treated, painted, epoxy , noble wood…
– Variety of options for coating of structural elements
– Structure can be used to install cables, pipes…
– Available in C4 or C5 corrosion class.
– Customization available on request.
– Connection pieces and foundations on request.
– Safety railings in option.
– Delivery time: From 8 week
