Modular elevated tracks in local wood to foster safe and rapid active mobility.

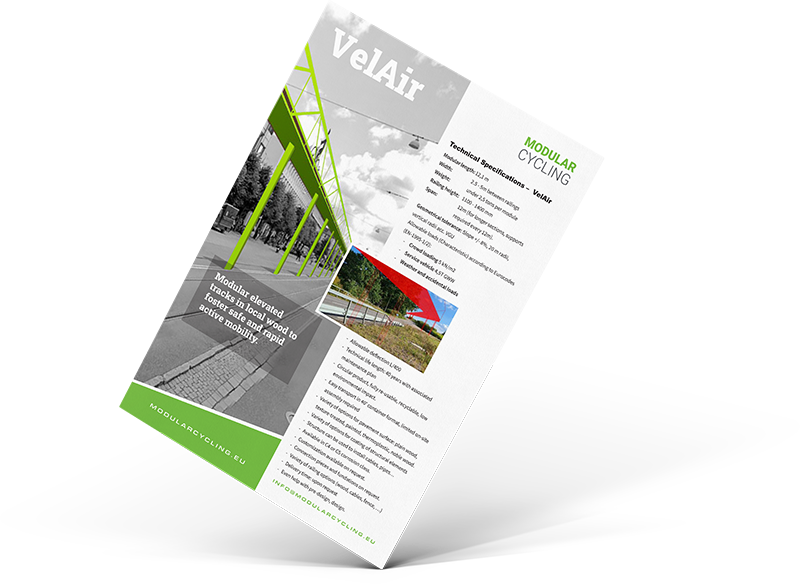

Technical Specifications – VelAir
Modular length: 12,1 m
Width: 2.5 – 5m between railings
Weight: under 2,5 tons per module
Railing height: 1100 – 1400 mm
Span: 12m (for longer sections, supports required every 12m). Geometrical tolerance: Slope +/- 8%, 20 m radii, vertical radii acc. VGU Allowable loads (Characteristic) according to Eurocodes (EN-1995-1/2): –
Crowd loading 5 kN/m2 – Service vehicle 4,5T GWW
Weather and accidental loads
– Allowable deflection L/400
– Technical life length: 40 years with associated maintenance plan
– Circular product, fully re-usable, recyclable, low environmental impact.
– Easy transport in 40’ container format, limited on-site assembly required
– Variety of options for pavement surface: plain wood, texture-treated, painted, thermoplastic, noble wood.
– Variety of options for coating of structural elements
-.Structure can be used to install cables, pipes… – Available in C4 or C5 corrosion class.
– Customization available on request.
– Connection pieces and fundations on request.
– Variety of railing options (wood, cables, fence, …)
– Delivery time: upon request
– Even help with pre-design, design
